Description

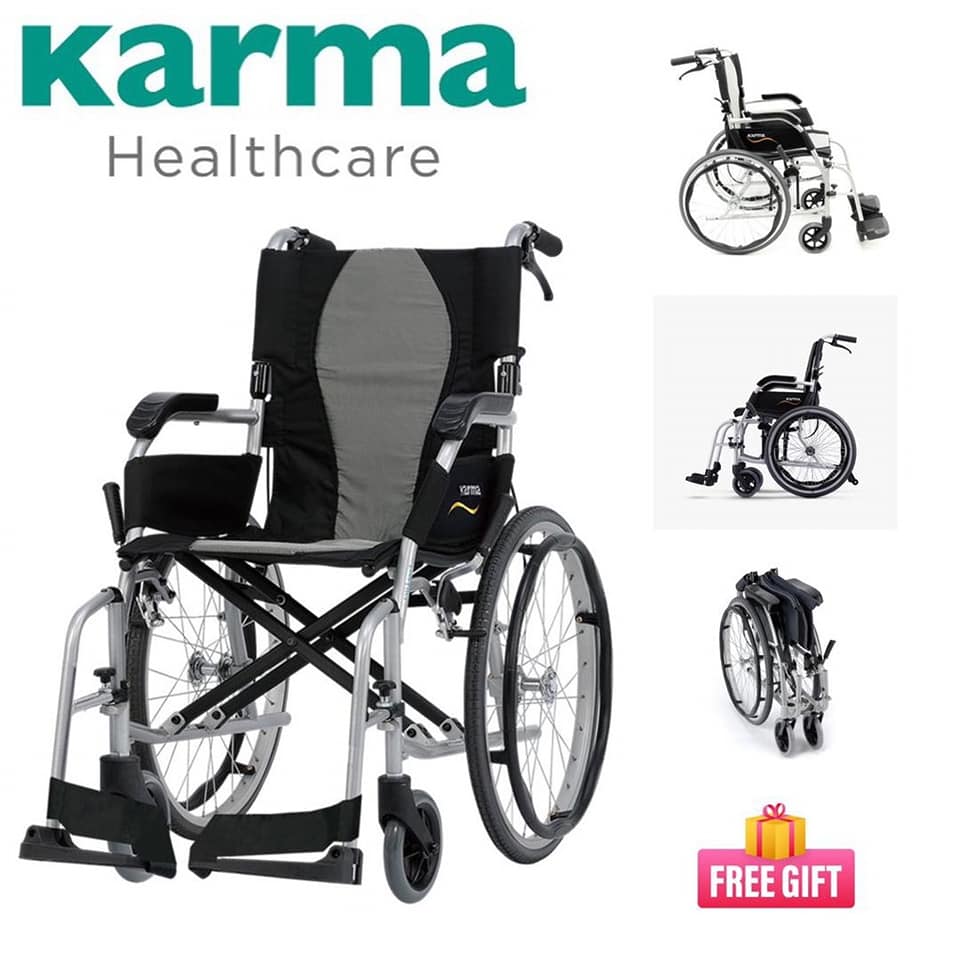

The Ergo Lite 2 (KM-2512) is an ultralight aluminum wheelchair with the ergonomic features of the Ergo Lite. Transfer easily on and off the wheelchair with the detachable swing-away footrests. Choose between the attendant-propelled or the self-propelled rear wheels.
Specification:
Nominal Seat Width (inch) 16 18
Nominal Seat Depth (inch) 17 17
Effective Seat Width (mm) 400 450
Effective Seat Depth (mm) 430 430
Front/Rear Wheel (inch) 6/20 6/20
Seat Surface Height at Front Edge (mm) 480 480
Backrest Height (mm) 420 420
Armrest Height (mm) 215 215
Front Location of Armrest Structure (mm) 310 310
Calf Length (mm) 360-410 360-410
Seat Plane Angle (X°) 5 5
Seat to Backrest Angle (X°) 96 96
Leg to Seat Surface Angle (X°) 102 102
Max. User Weight (kg) 100 100
Total Mass (kg) 10.7 10.9
Mass of Heaviest Part (kg) 6.7(20Q) 9.7(20F) 6.7(20Q) 9.8(20F)
Overall Length (mm) 930 930
Overall Width (mm) 595 645
Overall Height (mm) 900 900
Folded Length (mm) 695 695
Folded Width (mm) 280 295
Folded Height (mm) 700 710
Free Bergamot facemask for each purchase.
